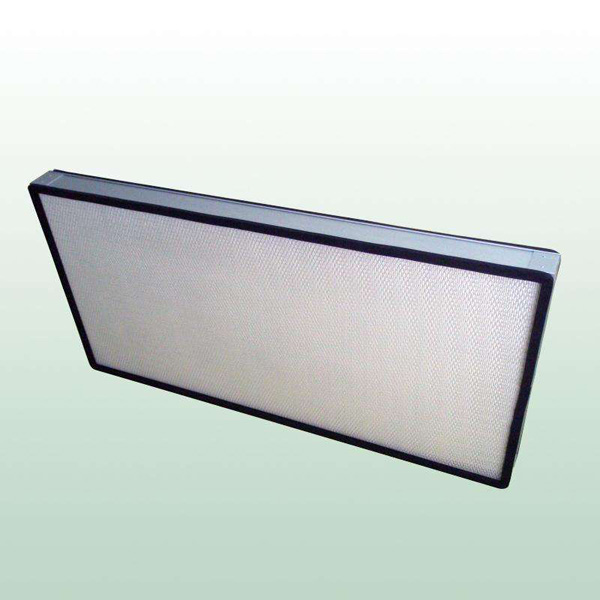

铝框无隔板过滤器规格

铝框无隔板过滤器规格

外型尺寸                         额定风量                         初阻力                         效率

305*305*35                    110                                 210Pa                      ≥99.99

610*610*35                    450

915*610*35                    680

 915*610*90                    1900                                210Pa                      ≥99.99

 305*305*50                    180                                  210Pa                      ≥99.99

610*610*50                    700

305*610*50                    360

320*320*50                    200

350*350*50                    240

484*484*50                    450

630*630*50                    750

720*760*50                    1000

820*600*50                    900

915*610*50                    1100

1220*610*50                  1400

305*305*100                  360                                 210Pa                      ≥99.99

305*610*100                  700

320*320*100                  400

350*350*100                  500

484*484*100                  900

600*600*100                  1350

610*610*100                  1400

630*630*100                  1500

726*484*100                  1360

720*760*100                  2000

820*600*100                  1800

915*610*100                  2200

945*630*100                  2200

968*484*100                  1760

1220*610*100                2800

1260*630*100

 305*305*80                    300                                  210Pa                      ≥99.99

305*610*80                    600

320*320*80                    330

350*350*80                    400

484*484*80                    750

600*600*80                    1160

610*610*80                    1300

630*630*80                    1300

726*484*80                    1130

720*760*80                    1760

820*600*80                    1600

915*610*80                    1900

945*630*80                    1920

968*484*80                    1500

1220*610*80                  2400

1260*630*80                  2560

 305*305*69                    250                                 210Pa                      ≥99.99

305*610*69                    500

320*320*69                    280

350*350*69                    330

484*484*69                    630

600*600*69                    970

610*610*69                    1000

630*630*69                    1070

726*484*69                    940

720*760*69                    1470

820*600*69                    1320

915*610*69                    1500

945*630*69                    1600

968*484*69                    1260

1220*610*69                  2000

1260*630*69                  2130

1120*490*69                  1470

1170*570*69                  1800
