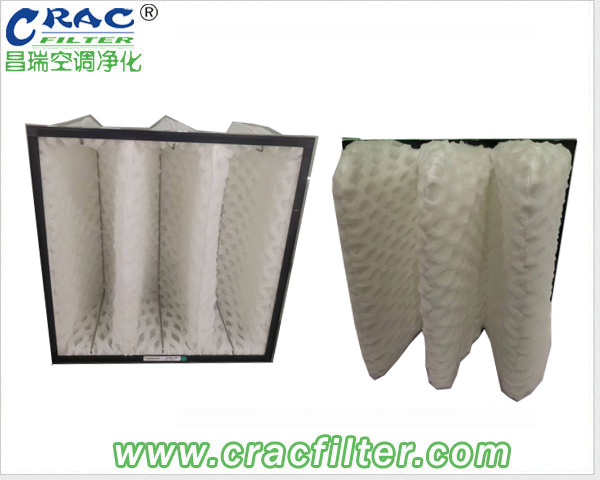

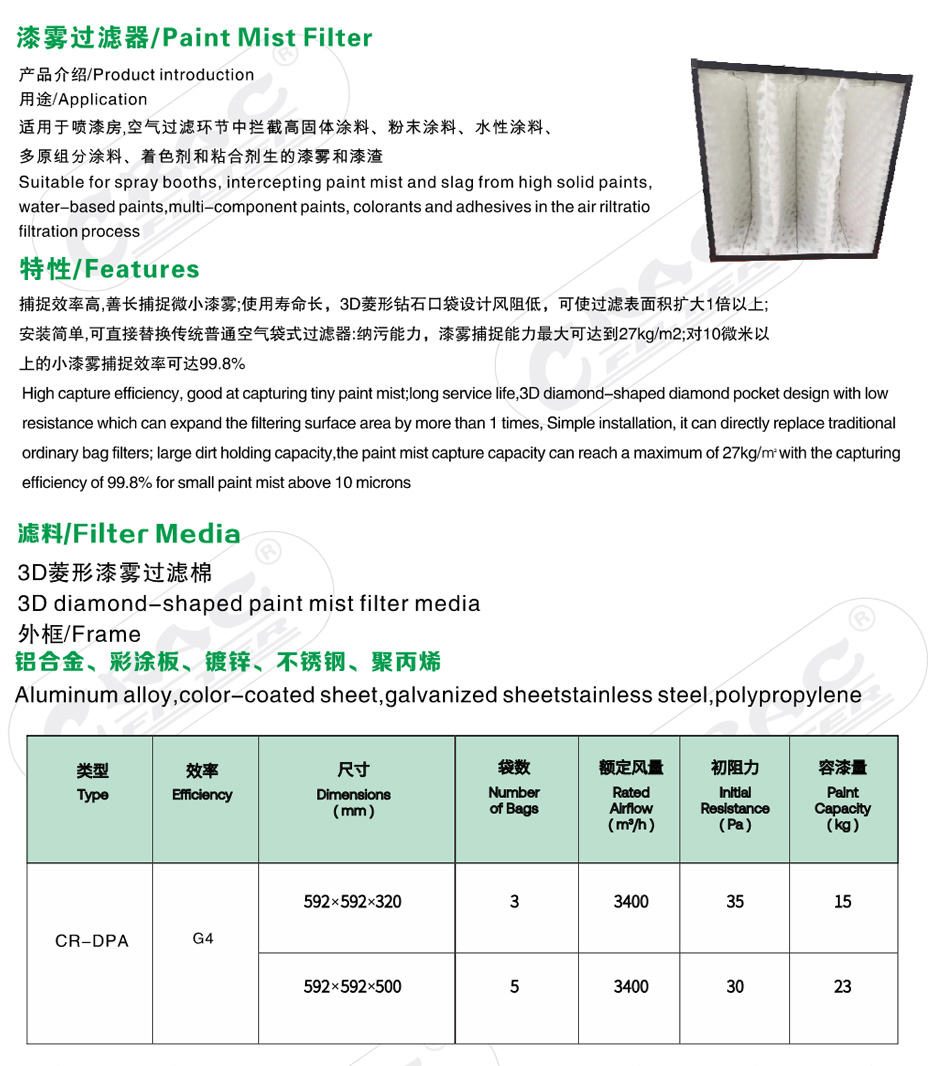

漆雾过滤器/Paint Mist Filter
产品介绍/Product introduction
用途/Application
适用于喷漆房,空气过滤环节中拦截高固体涂料、粉末涂料、水性涂料、多原组分涂料、着色剂和粘合剂生的漆雾和漆渣Suitable for spray booths, intercepting paint mist and slag from high solid paints,water-based paints,multi-component paints, colorants and adhesives in the air riltratiofiltration process
特性/Features
捕捉效率高，善长捕捉微小漆雾;使用寿命长，3D菱形钻石口袋设计风阻低，可使过滤表面积扩大1倍以上;
安装简单,可直接替换传统普通空气袋式过滤器:纳污能力，漆雾捕捉能力最大可达到27kg/m2;对10微米以上的小漆雾捕捉效率可达99.8%
efficiency of 99.8% for small paint mist above 10 microns
High capture efficiency, good at capturing tiny paint mistlong service life,3D diamond-shaped diamond pocket design with low
resistance which can expand the filtering surface area by more than 1 times, Simple installation, it can directty replace traditional
ordinary bag fiters; large dirt holding capacity,the paint mist capture capacity can reach a maximum of 27kg/m with the capturing
滤料/Filter Media
3D菱形漆雾过滤棉3D diamond-shaped paint mist filter media
外框/Frame
铝合金、彩涂板、镀锌、不锈钢、聚丙烯
Aluminum alloy,color-coated sheet,galvanized sheetstainless steel,polypropylene
